Special Design for for Wire Cutting EDM Machine Wire Cut EDM Machine supply to Cocos (Keeling) Islands Factory

Share to:
    Payment Type: L/C,T/T,Paypal,Western Union
    Incoterm: FOB,CFR,CIF
    Min. Order: 1 Others
    Delivery Time: 30 Days
  • Product Detail
  • Product Tags
  • Buyer Reviews

Innovation, quality and reliability are the core values of our company. These principles today more than ever form the basis of our success as an internationally active mid-size company for Wire Cutting Machine Sale,Wire Cut Edm Machine Price,Edm Wire Cutting Machine. please do not hesitate to contact us for further information.

Special Design for for Wire Cutting EDM Machine Wire Cut EDM Machine supply to Cocos (Keeling) Islands Factory

Wire Cut EDM Machine SCT32-ST

wire cutting edm

Wire Cut EDM Machine Specification

Travels(XY)                      400×320mm

Travel Z(electrical)            300mm

U × V travel                       60×60mm

Worktable size                  660×450mm

Water tank size                 980×550mm

X, Y axes resolution          0.001mm

Max cutting taper              ±3° / 80 mm thickness

Max cutting thickness        320mm

Wire diameter                   ¢0.12 - ¢0.2mm

Auto wire threading system No

Max workpiece weight        400kg

Work type Flushing

Filtration system Brass WEDM type filter

Machining technology

Max machining current     10A

Max cutting speed             >200 mm²/min

Multiple cutting precision   ≤ ± 0.0025mm

Best surface roughness    (Ra) ≤0.7µm

CNC control system

Operation system AutoCut system base on Windows XP

Display 15' color LED inch

Programmable axes XYUV-axes (4 axes simultaneous)

Interpolation Linear / circle

Interface USB & RS232 & LAN interface

Driver type AC servo drive

Power supply system

Power input                     2.3 KW

Others

Power source                  380V (±10%) 50Hz~60Hz

Machine size (L×W×H)    1680×1200×2300 mm

Machine weight               2000 kg

wire cut edm machine


Wire Cut EDM Machine key parts

Linear guideway           HIWIN P3 grade linear guideway

Ball screw                     HIWIN silver C3 grade precision ball screw

Wire drum                     HIWIN P3 grade linear guideway

U, V axis taper device   HIWIN P3 grade linear guideway

Bearings                      Germany NEY precision bearing

Computer                     Special industrial computer

Display                         Industrial Display

Electrolytic capacitors  Japan Ruby or King Kong

X, Y axis servo motor   Japan Panasonic AC servo motor

Wire guider                  Special type diamond guider for wire

Filtration systems         Brass WEDM type water filter

Z-axis electric lift           Electric type

Guide wheel                 Special thickness guide wheel

Multifunction fixture       Brass WEDM type fixture

High-strength body structure         T sharp machine bed

Wire constant tension device         2 sets constant tension device

High frequency pulse power          Japan technology, high speed, low roughness

Electrical                      Schneider

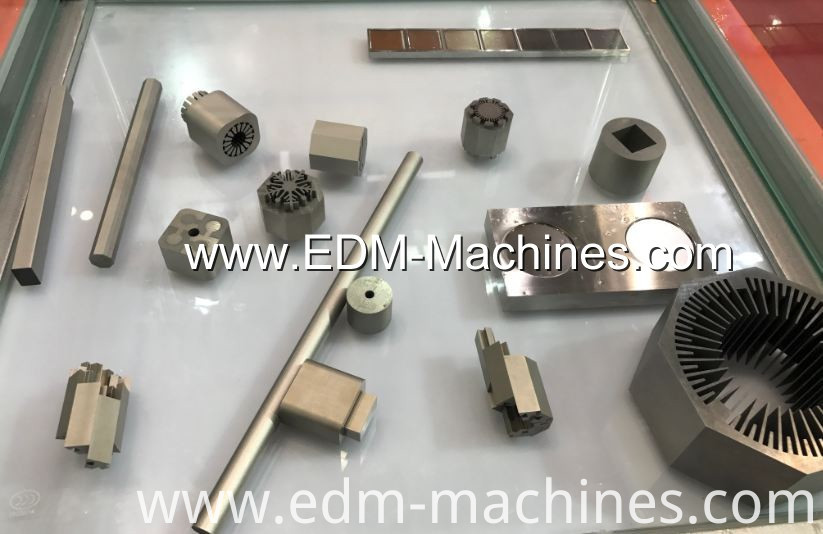

wire edm machine cutting sample

Wire Cut EDM Machine feature

  • AutoCut controller system based on Windows XP
  • "C"structure
  • "T"shape machine bed same with brass WEDM structure
  • Special industrial computer
  • LCD
  • Japan Panasonic AC servo motor
  • Hiwin linear guideway
  • Hiwin ball screw
  • Water tank similar with brass WEDM type
  • Automatic lubrication and collect exceed oil system
  • Automatic wire tension system
  • High rigidity fixture same with brass WEDM
  • Best finish: 0.0007mm
  • Precision: +-0.0025mm
  • LED working lamp
  • Special Z device up and down by motor
  • Our eternal pursuits are the attitude of "regard the market, regard the custom, regard the science" as well as the theory of "quality the basic, have confidence in the very first and management the advanced" for Wire Cut EDM Machine. The product will supply to all over the world, such as: Guatemala,France,Japan. Customer satisfaction is our goal. We are looking forward to cooperating with you and providing our best services to suit your needs. We warmly welcome you to contact us and make sure you feel free to contact us. Browse our online showroom to see what we can do for you. And then E-mail us your specs or inquiries today.
